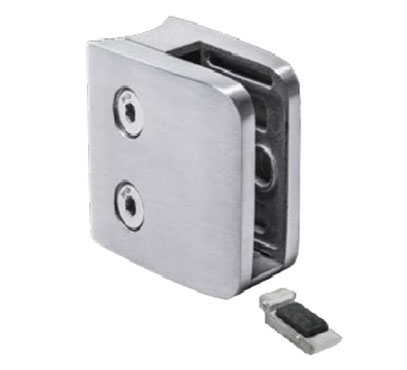

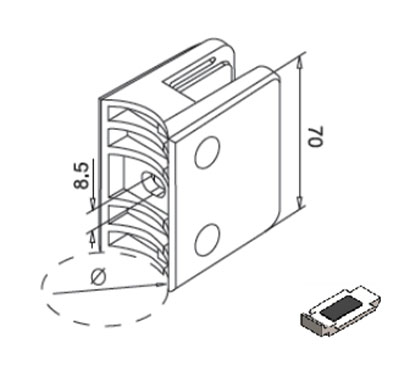

55×70 – with safety plate only – #09
Technical Parameter
55*70 Glass Clamp Square/Glass Clip /Glass Holder with plate only
Material: AISI304, AISI316, Zamak, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD

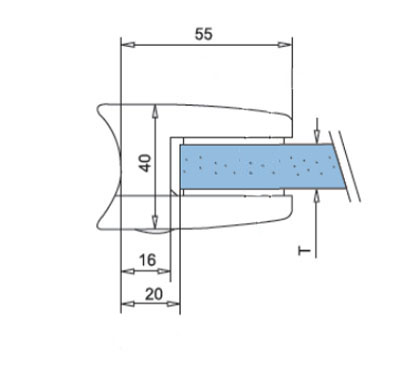

| Code | T(mm) | φ(mm) | W(mm) |
| B11000 | 12-17.52 | Flat | 40 |
| B11042 | 12-17.52 | 42.4 | 40 |
| B11048 | 12-17.52 | 48.3/50.8(2″) | 40 |
| Rubber | |||
| G01212 | 12 | – | – |
| G01213 | 12.76 | – | – |
| G01217 | 16.76 | – | – |
| G01218 | 17.52 | – | – |
