Baluster Post Mount Handrail Bracket
Technical Parameter

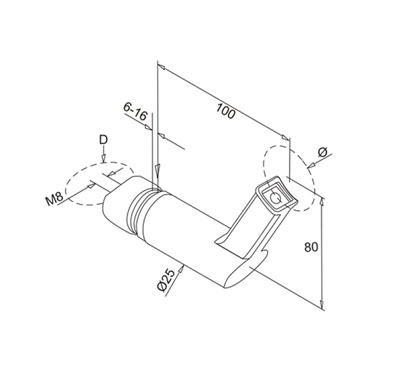

Q – Line Railing Post Bracket
Material: AISI304, AISI316, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD
| Code | φ(mm) | D(mm) |
| A41142 | 42.4 | 42.4 |
| A41242 | 42.4 | 48.3 |
| A41342 | 42.4 | Flat |
| A41348 | 48.3/50.8(2″) | Flat |
| A41448 | 48.3/50.8(2″) | 48.3/50.8(2″) |
